Apologies for the complete lack of posts in 2012! – progress is not quite as ongoing as I would’ve hoped… Anyway, last summer I purchased a cast iron 4bbl intake (not date correct, but that doesn’t bother me too much). Here it is:       This was a typical eBay “perfect working condition”… clear, heavy rust pitting at the exhaust crossover and water ports. My engine shop suggested any…
Read the full post

Rochester Quadrajet Carburetor Rebuild

How to rebuild a Rochester Quadrajet carburetor. For now, this is just a dump of all the remaining pictures I have of the rebuild process (unfortunately a few got corrupted on my failing hard drive). In time I will write the article step-by-step and arrange the photos in a logical order. For now, the photos may be of some help as a reference. Click on any image to view larger.…
Read the full post

Passenger side door skin (almost) on

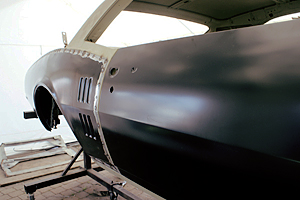

First was to get the door off the car, and then remove the existing remnants of skin. The easiest way to do that was to just grind away at the folded edges… So, the left, right and bottom edges of the skin need to be ground down. … but no need to do the top edge, as the whole support rail on the top side of the skin is replaced…
Read the full post

… and the left rear quarter panel. (And door skin, sort of)

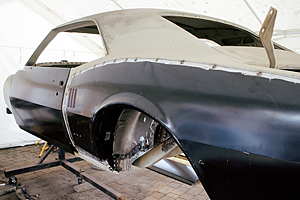

So today the driver side quarter was finished, cut to size and shape, and tacked into position.   First was to cut away some more of the old quarter. I cut an inch below the top edge and about two inches from the door. A centimetre above the lower contour line. And at the back end there’s about an inch of wrap around. I also painted (with POR-15) some bare…
Read the full post

Right rear quarter is in place, looking good…

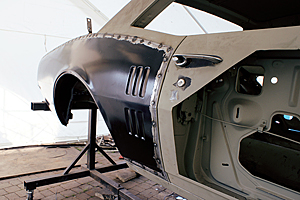

Today got the right hand rear quarter tacked in place. With the quarter on it’s starting to feel like a car again!   Also started cutting the left hand quarter to shape, and that should be tacked in place tomorrow. I’ve taken some in-progress pictures for the left hand side so I’ll post them soonish.…
Read the full post

Left side rear end rebuilt

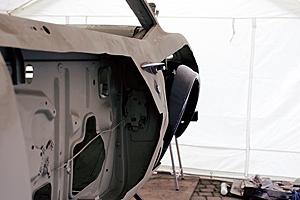

Since the last post… New sheet metal for the shock mount, trunk pan extension, quarter filler panel, and inner and outer wheelhouses… and rebuilt structural shock mount area. I’ll add some more detailed step-by-step pictures shortly.   Still a lot of grinding, welding and more grinding and welding to do……
Read the full post

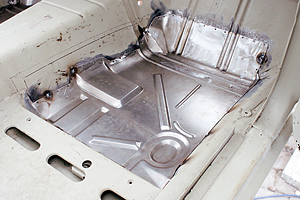

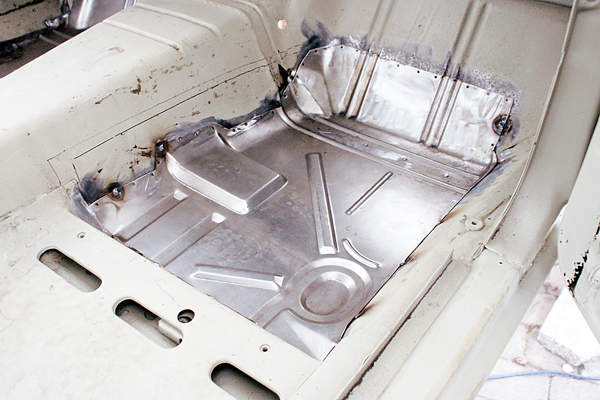

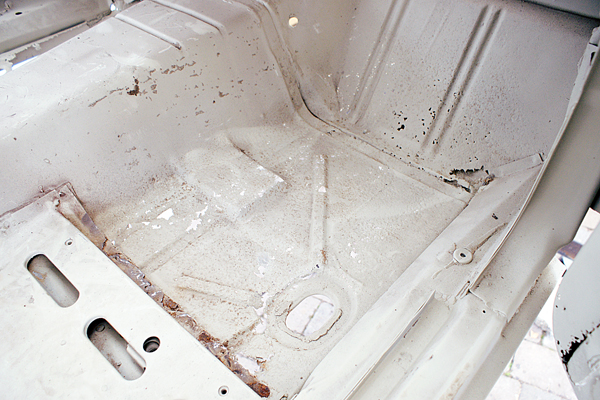

Passenger floor replaced

Before / After
Read the full post

Driver floor now exists.

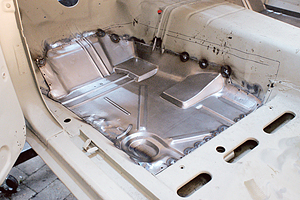

Here is (what remains of) the original driver side floor. Somewhat lacking in metal.   The replacement pan to be cut on the black line. And positioned in situ. The panel doesn’t fit too well; the recesses do not line up with the originals under the car… It’s as if everything needs to be shifted half an inch to the left but the left edge of the pan is restricting…
Read the full post

Rear seat rust repair.

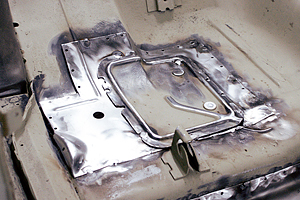

Was just going to do a small patch job to the side of the support plate (it’s the plate that the traction arm bolts to from underneath). But thought I had better remove the plate and see the extent of the damage… It was pretty ugly underneath, with a lot of metal rotted to nothing and a fair few pinholes. So it’d be best to do a larger patch panel.…
Read the full post

And the second floor is in.

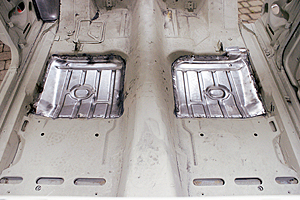

There were too many little rust holes to patch up, so the whole floor is to be replaced. First was to decide and mark out how much of the old floor to cut out.   Then, the cut out section is overlaid on the new floor pan and drawn around. Then enlarge the outline by about an inch or so all around and cut out the new pan.   The…
Read the full post

The first floor in.

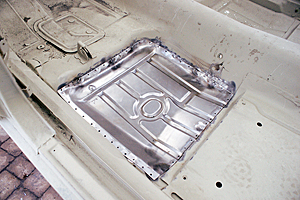

Welded the rear end section a bit more, but have decided I’m going to go round and do all the welds in one go (a few will be done when installing the panels to hold them in position and for body strength)… so I will proceed with installing more panels. Today I put in the new right side rear floor pan. This was very straightforward… Cut the old one out,…
