Archive: 2009

AutoTwirler for sale!!

AutoTwirler Car Rotisserie — SOLD! Click Here http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=110421069621…
Read the full post

♫ Back On The Floor Again

Well OK it’s still not on 4 wheels… but it’s getting there. I got the body off the AutoTwirler and back on to the rebuilt front subframe
Read the full post

Undersealed

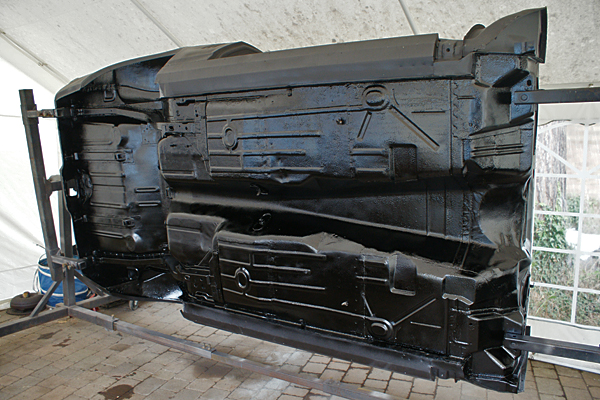

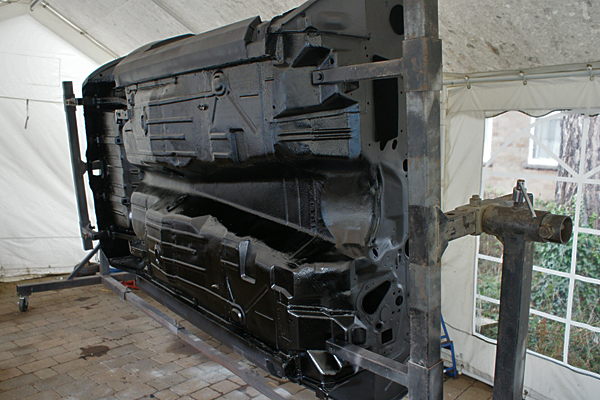

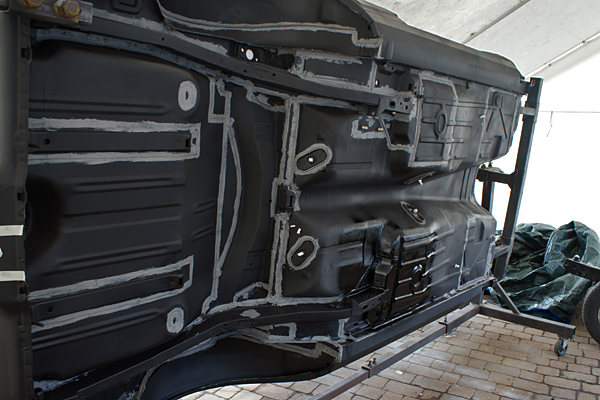

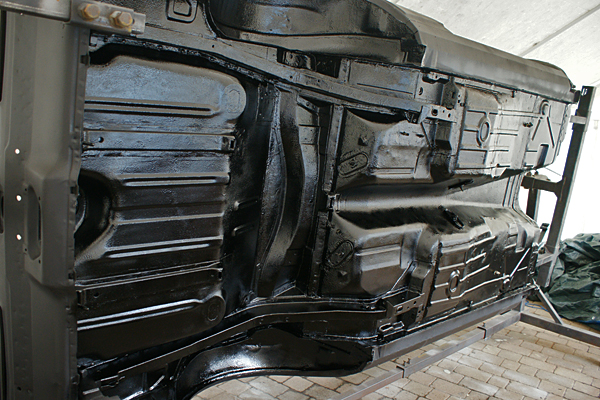

All the welds and joins have been sealed with a brush-on sealer. I started off neat, but ended up just lathering it on.     Then I used Dinitrol 4941 underseal applied with a shutz gun. I’ve just done the one thick coat.   Tomorrow I’ll give the coating a look-over once it’s dry and hopefully (if everything is fine) mount the body back to the rear axle and subframe.…
Read the full post

Finally… an update!

So, where the car stands… 2 noise complaints from the council down the line, all the grinding of welds is done. The body and panels have been shotblasted again and not by a cowboy with an air compressor and a bucket of sand, this time hopefully by a professional. Everything is primered in Eastwood epoxy.   Before:   During:   Now:   The subframe has been fully rebuilt with new…
Read the full post

Passenger side door skin (almost) on

First was to get the door off the car, and then remove the existing remnants of skin. The easiest way to do that was to just grind away at the folded edges… So, the left, right and bottom edges of the skin need to be ground down. … but no need to do the top edge, as the whole support rail on the top side of the skin is replaced…
Read the full post

… and the left rear quarter panel. (And door skin, sort of)

So today the driver side quarter was finished, cut to size and shape, and tacked into position.   First was to cut away some more of the old quarter. I cut an inch below the top edge and about two inches from the door. A centimetre above the lower contour line. And at the back end there’s about an inch of wrap around. I also painted (with POR-15) some bare…
Read the full post

Right rear quarter is in place, looking good…

Today got the right hand rear quarter tacked in place. With the quarter on it’s starting to feel like a car again!   Also started cutting the left hand quarter to shape, and that should be tacked in place tomorrow. I’ve taken some in-progress pictures for the left hand side so I’ll post them soonish.…
Read the full post

Left side rear end rebuilt

Since the last post… New sheet metal for the shock mount, trunk pan extension, quarter filler panel, and inner and outer wheelhouses… and rebuilt structural shock mount area. I’ll add some more detailed step-by-step pictures shortly.   Still a lot of grinding, welding and more grinding and welding to do……
Read the full post
