Removing timing chain and gears.

Tagged: Disassembly, Engine

19th July 2008

With the timing chain cover off, it is just a case of unbolting the camshaft gear…

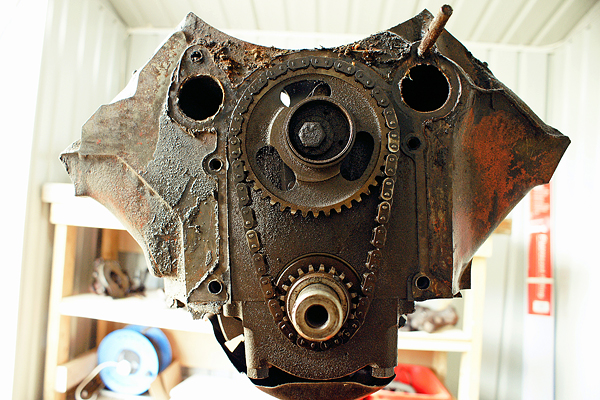

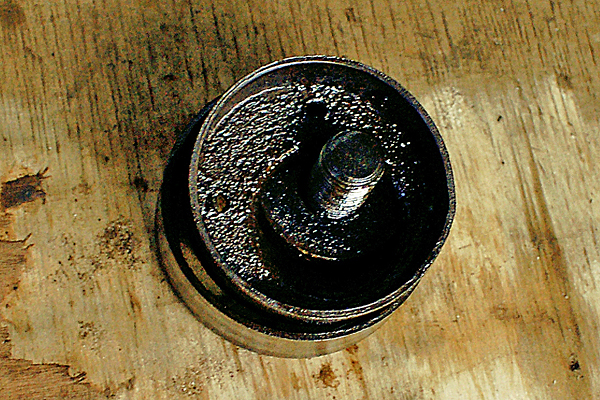

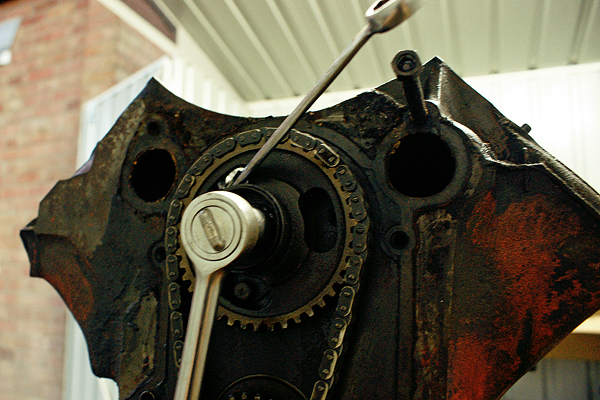

The timing chain and gears. Unbolting the cam gear. I used a spanner to stop it rotating. The cam gear bolt. The cam gear and chain can now be pulled off.

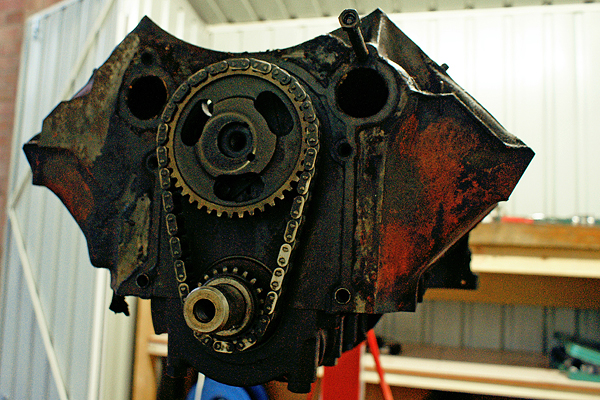

… And pulling the gear and chain off.

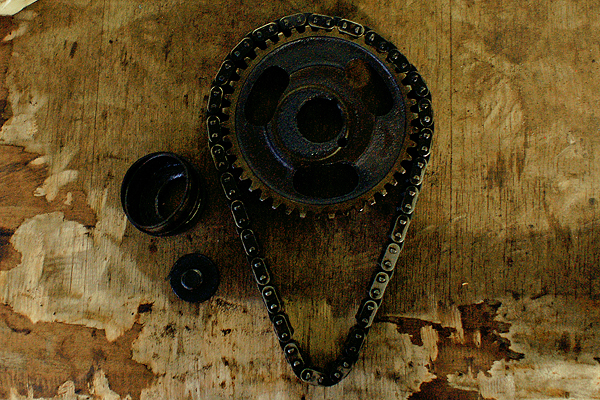

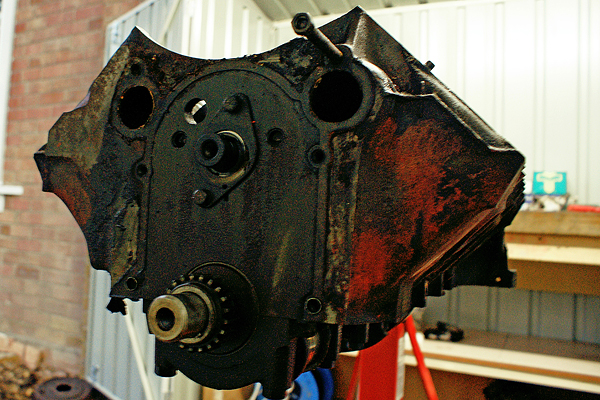

The gear and chain off engine. The removed chain and gear.
